AG500 BK ARGB
Performance CPU Cooler

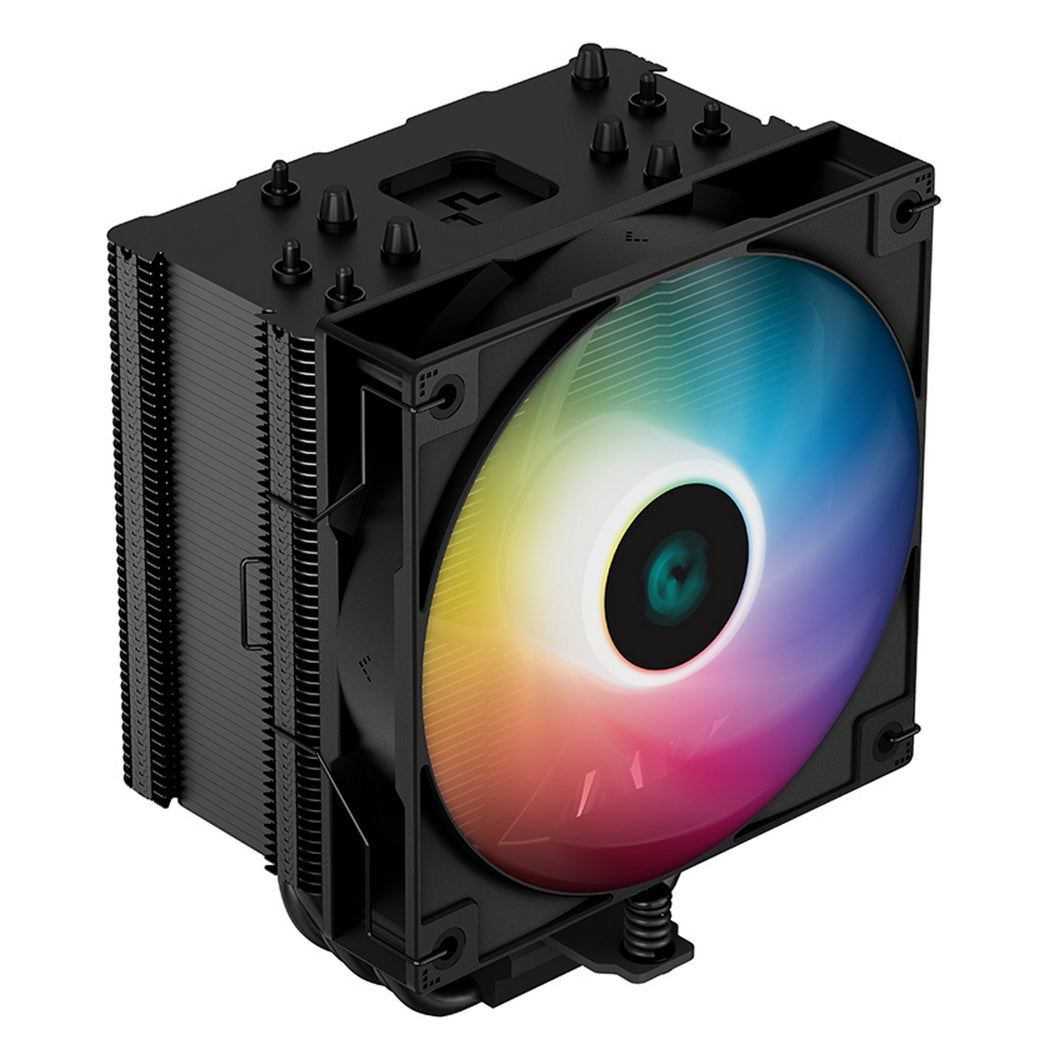

The DeepCool AG500 BK ARGB is an all-black compact single-tower CPU cooler focused on high performance efficiency boasting five direct-contact copper heat pipes packed in a dense heat sink tower for optimal heat dissipation and paired with a fine-tuned 120mm ARGB PWM fan for powerful cooling.
STELLAR THERMAL CONDUCTIVITY
Supercharge your cooling capacity and efficiently lower your CPU system temperature with 240W of heat dissipation performance to keep up with the latest generation. Built for 4K gaming and other demanding processing workloads to get the most of your CPU while keeping cool.
HIGH EFFICIENCY FANS
Get the best of both worlds with a fine-tuned 120mm ARGB PWM fan designed for optimal balance in top performance under load to silent efficiency when idle. Highly effective with strong static pressure for rapid heat transfer throughout the heat sink.
- 300-1850 RPM
- =29.4 dB(A)
- 67.88 CFM
PRIME COMPATIBILITY
Designed with offset heat pipes to accomodate the larger heat sink depth for better component compatibility. This allows more space for tall heat spreaders and an unobstructed view of all your RAM slots.
MATRIX FINS ARRAY
High-quality aluminium fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique "checkerboard" design aesthetic.
SIMPLE AND SECURE
The included mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure. The offset design of the heat pipes ensures that the cooler can be installed with the fan already attached.
Application For
Intel: LGA1700 / 1200 / 1151 / 1150 / 1155
AMD: AM5 / AM4
Product Dimensions
125 x 95 x 155 mm
Heatsink Dimensions
120 x 93 x 150 mm
Net Weight
861g
Heatpipe
6 mm x 5 pcs
Fan Dimensions
120 x 120 x 25 mm
Fan Speed
300~1850 RPM ± 10%
Fan Airflow
67.88 CFM
Fan Air Pressure
2.04 mmAq
Fan Noise
=29.4 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.14 A
Fan Power Consumption
168 W
LED Type
Addressable RGB LED
LED Connector
3-pin (+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
1.05 W
