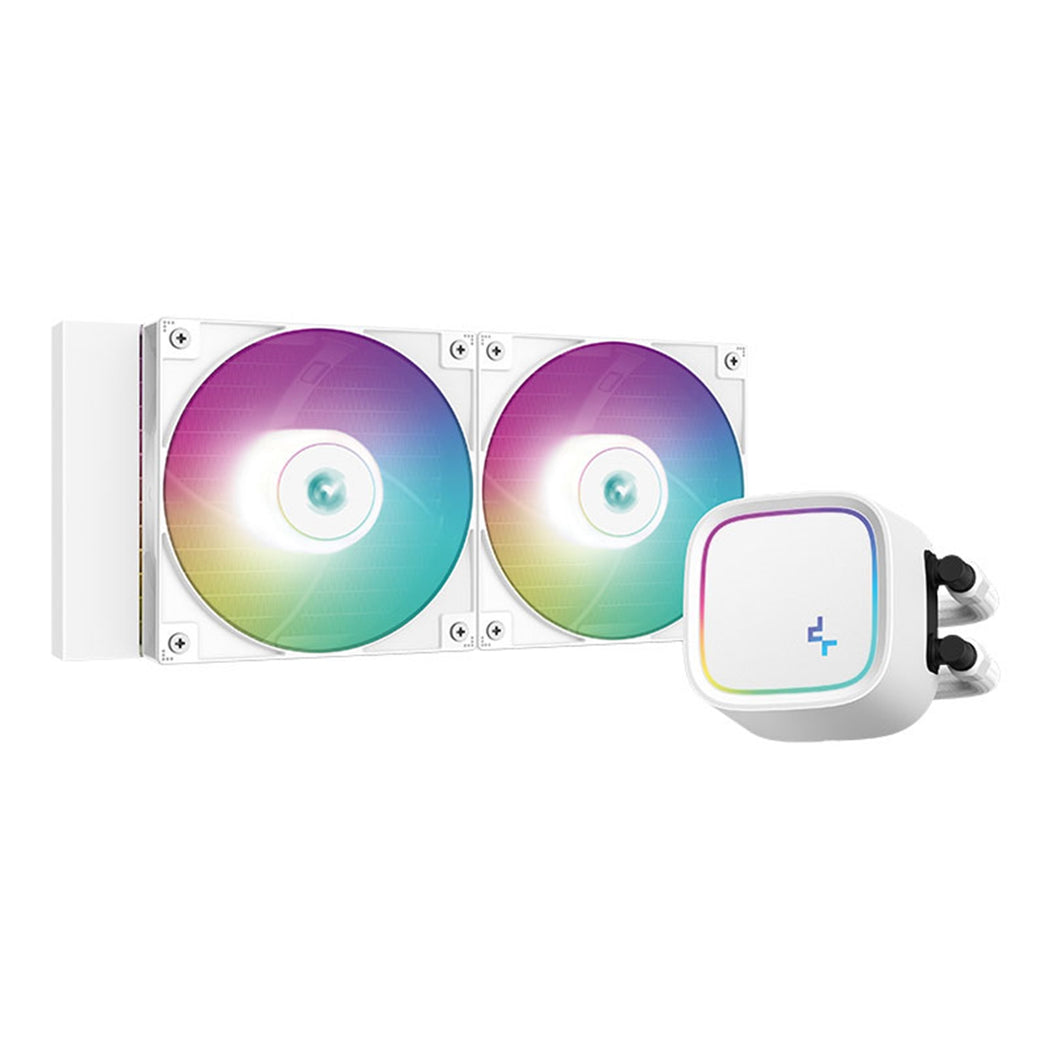

LE520
The DeepCool LE520 all-in-one liquid cooler is equipped with new high-performance ARGB fans, thermal paste, and DeepCool's new liquid cooler series design elements.
Powerful Heat Dissipation
Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 achieves excellent heat dissipation of 220W TDP.
New Series Design
The LE520 features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.
High-Performance ARGB Fans
The included high-performance ARGB fans are vibrant, bright, and support various motherboard synchronisations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
Anti-Leak Technology
The LE520 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.
Simple and Secure
The installation is simple and compatible with the latest mainstream Intel and AMD processors.
Specifications
Radiator Dimensions
282 x 120 x 27 mm(L x W x H)
Radiator Material
Aluminum
Tube length
410 mm(L x W x H)
Pump Dimensions
91 x 80 x 52 mm(L x W x H)
Pump Speed
2400 RPM + 10%
Pump Noise
17.8 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.2 A
Pump Power Consumption
2.4 W
Fan Dimensions
120 x 120 x 25 mm(L x W x H)
Fan Speed
500 - 2250RPM + 10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
<32.9 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.25 A
Fan Power Consumption
3.0 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.25 W(PUMP)/ 2.1 W(FAN x 2)
